首页 / 产品 / Construction hoist / SC Series Low / Middle / High Speed Frequency Construction Hoist

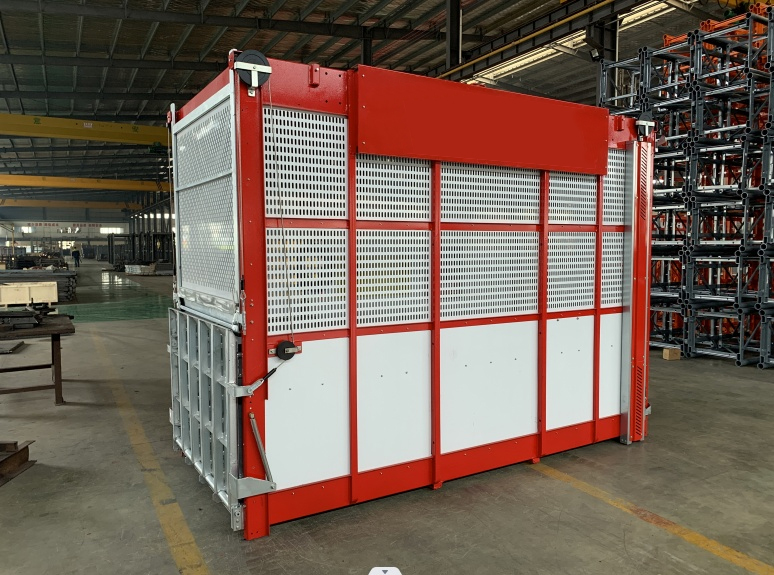

SC Series Low / Middle / High Speed Frequency Construction Hoist

Description: To satisfy the increasing demand for high building construction, we have developed hoist with low, medium and high speed, with a max. lifting speed of 96 m/min. There is ...
  • ModelNumber: SC200/200GS
  • Pay-load capacity: 2000kg
  • Max. lifting height: 450m
  • Power supply: 380/50V/Hz
Inquiry now
  • Share to :
  • Youtube
  • Facebook
  • Instagram
  • linkedin
  • twitter
SC Series Low / Middle / High Speed Frequency Construction Hoist 2:39 下午

Description: To satisfy the increasing demand for high building construction, we have developed hoist with low, medium and high speed, with a max. lifting speed of 96 m/min. There is the following features:

  1. Adopt the most advanced inverter control system.
  2. Because of soft starting and braking, there is no impact and the machine can be operated smoothly.
  3. The inverter system has current-restriction function and can ensure a small current when motor starts up and reduces the impact of power supply, prolonging life span of electrical components.
  4. The soft start and brake lowers the vibration of the system effectually and reduces wears of rack, pinion and the brake. At the same time, it can prolong the life of the parts.
  5. The inverter system also has the over-voltage protection, low-voltage protection, over-current, over-load and over speed protection functions. The system adopts special software for hoists, making the operation safe and reliable.
ModelNumberSC200/200GS
Pay-load capacity2000kg
Speed0-46m/min
0-50m/min
0-58m/min
0-63m/min
0-96m/min
Max. lifting height450m
Power supply380/50V/Hz
Motor power2x2x11*kW
2x2x18.5kW
2x2x13*kW
2x3x11*kW
2x3x18.5*kW
Inverter power2x37kW
2x37kW
2x45kW
2x75kW
2x110kW
Cage size3200x1500x2300
ModelNumberSC270/270GS
Pay-load capacity2700kg
Speed0-63m/min
0-96m/min
Max. lifting height450m
Power supply380/50V/Hz
Motor power2x3x15*kW
2x3x22*kW
Inverter power2x90kW
2x132kW
Cage size3200x1500x2300mm
